RJX part RJX1306 5.8G 25mW 48CH 800 TVL 1S Micro FPV Camera
Brand: RJX
Item No.: RJX1306
RJX 5.8G 25mW 48CH 800 TVL 1S Micro FPV Camera
Output power: 25mW
Supply Voltage: 2.9-5.5V (Lipo battery 1S)
Size : 47x14.5x12mm

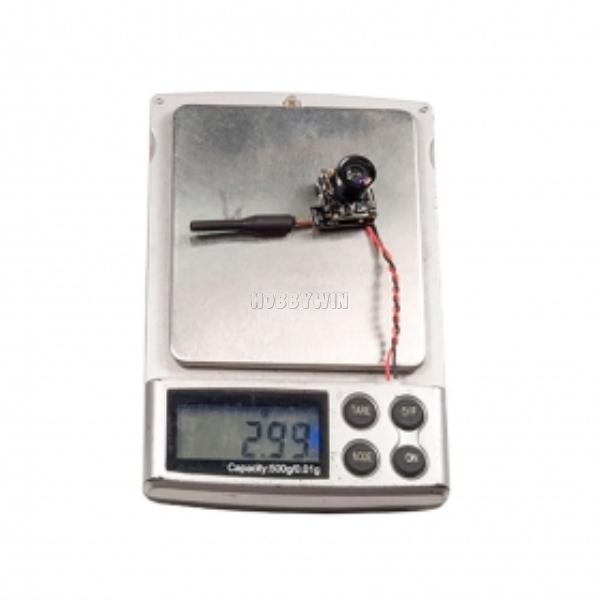

Weight: 3.2g
Antenna: Exclusive Dipole Whip Antenna
Power consumption: 200~215MA5V DCIN
Frequency: 5.8GHz 5 bands 48 channels, with Raceband: 5362~5945MHz
Field of view: 120º
Operating Temperature: -10℃~+60℃
Ambient temperature: 25℃
Channel SEL: Touch Switch
Channel Indicate: CH1~CH8 Channel indication with 8LEDS and A~F frequency, group Indicate with 6LEDS
Modulation type：FM
Transmit power: 13±1dBm
Frequency control: PLL
All harmonic: Max -50dBm
Frequency Stability: ±100KHz (Typ.)
Frequency precision: ±200KHz (Typ.)
Channel Carrier error: 1dB
Antenna Port: 50 Ω
SENSOR:PAL: 720X540/NTSC:640X480 1/4”
LENS ANGEL: H:120°/V:100°
Base-band interface: (P1.27*2)
Profile dimension: 14.5mm*12.2mm+14.5mm*12mm
Transmission Frequency
A: Ch1:5740MHz /Ch2: 5760MHz /Ch3: 5780MHz /Ch4: 5800MHz /Ch5: 5820MHz /Ch6: 5840MHz /Ch7: 5860MHz /Ch8: 5880MHz
B: Ch1: 5705MHz /Ch2: 5685MHz /Ch3: 5665MHz /Ch4: 5645MHz /Ch5: 5885MHz /Ch6: 5905MHz /Ch7: 5925MHz /Ch8: 5945MHz
C: Ch1: 5865MHz /Ch2: 5845MHz /Ch3: 5825MHz /Ch4: 5805MHz /Ch5: 5785MHz /Ch6: 5765MHz /Ch7: 5745MHz /Ch8: 5725MHz
D: Ch1: 5658MHz /Ch2: 5695MHz /Ch3: 5732MHz /Ch4: 5769MHz /Ch5: 5806MHz /Ch6: 5843MHz /Ch7: 5880MHz /Ch8: 5917MHz
E: Ch1: 5733MHz /Ch2: 5752MHz /Ch3: 5771MHz /Ch4: 5790MHz /Ch5: 5809MHz /Ch6: 5828MHz /Ch7: 5847MHz /Ch8: 5866MHz
F: Ch1: 5362MHz /Ch2: 5399MHz /Ch3: 5436MHz /Ch4: 5473MHz /Ch5: 5510MHz /Ch6: 5547MHz /Ch7: 5584MHz /Ch8: 5621MHz
Package Include
1x RJX FPV Micro AIO Camera
1x Camera Mount
FEATURES:
1. 5.8G 25mW 48CH 800 TVL Micro FPV Camera
2. Light weight only 3.2g, Small size with 47x14.5x12mm
3. Supporting touch switch select channel Frequency group,Supporting NTSC/PAL switch, Support vertical inverted image switch.
4. 8 LED display channel and 6LEDS display frequency group information, 1LED display PAL/NTSC and FLIP information.
5. Wide lens angle, Miniature and light weight design
