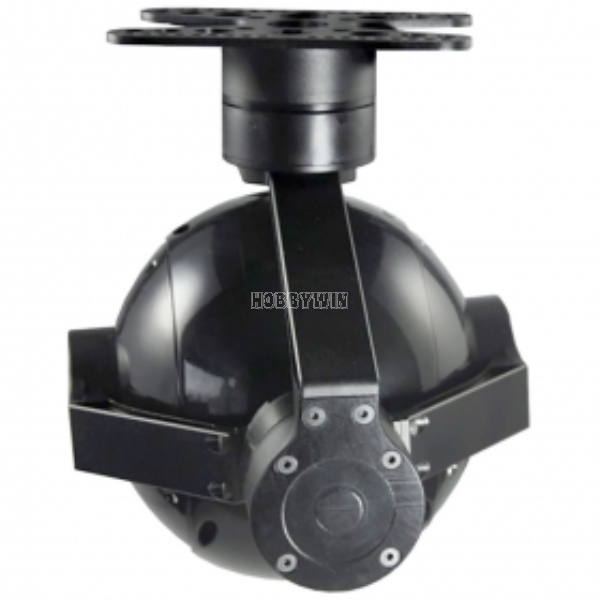

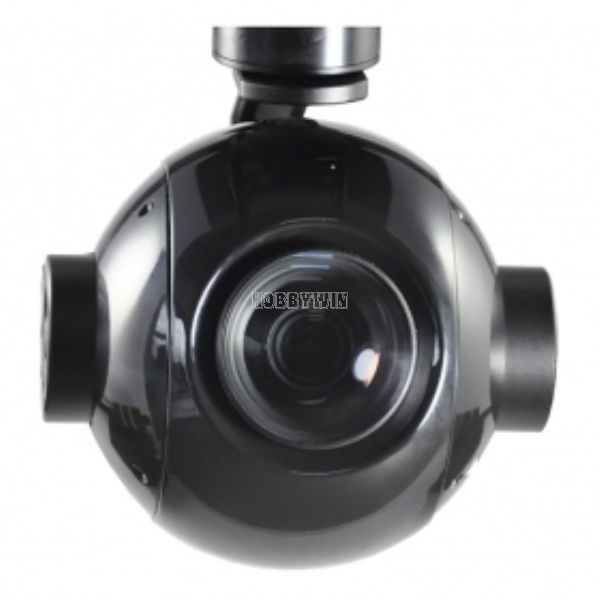

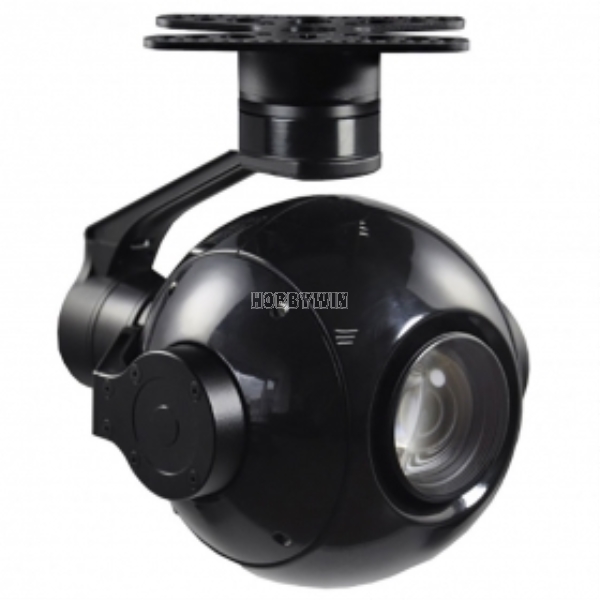

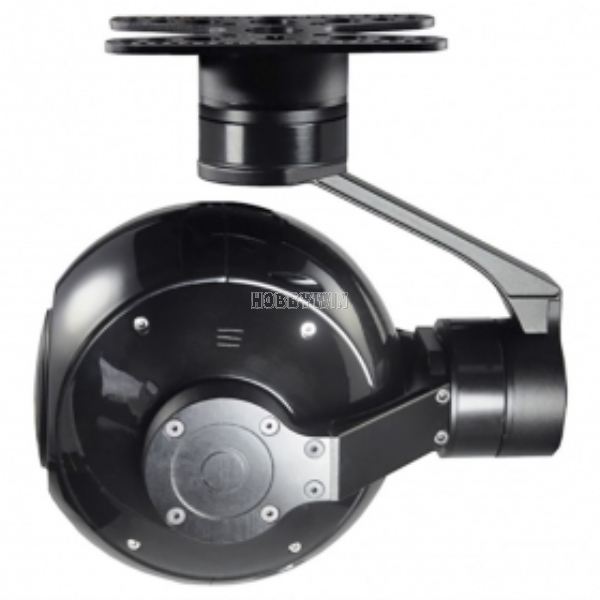

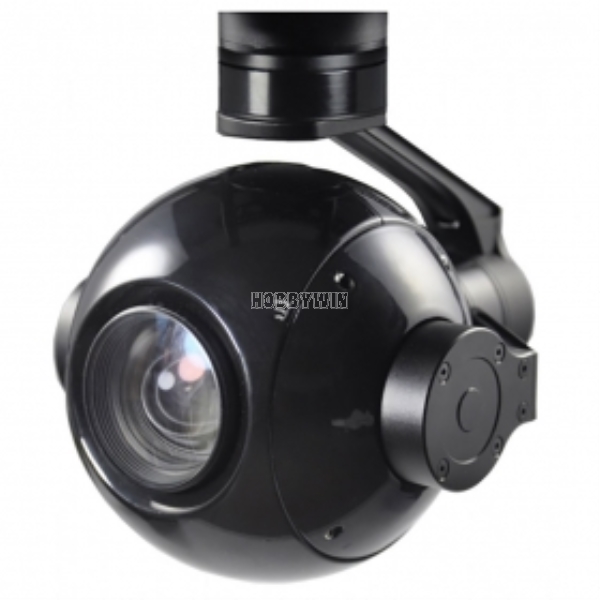

Q30 30x Optical Zoom 3-axis Camera Gimbal

Q30 30x Optical Zoom 3-axis Camera Gimbal
SKU: Q30

FEATURES:
Q30T is a high-precision professional 3-axis gimbal with 30x 1080P Optical Zoom Camera.
Based on FOC control technology, adopts high-precision encoder in the motors, it features high stabliity, small size, light weight and low power comsuption.
1. The Q30T speed is adjustable, low speed mode for large zoom range and high-precision control,high speed for small zoom range and high sensitivity.
2. One-key to center function, make it so easy to allow the gimbal automatically return to the initial position quickly.
3. Support PWM control, S.BUS and serial command control, suitable for remote control from close range Control or remote digital command control.


System Specifications:
Work Voltage: 3S/11.1V
IDDQ: 330mA/12V
IDDT: 450mA/12V
Temp: -20 -- +80 degree celsius
Size: L144*W151*H158mm
Weight: 720g
Pitch: -90 -- +90 degree
Roll: -85 -- +85 degree
Yaw: -150 -- +150 stepless rotation
Angular Vibration Range
Pitch & Roll： 0.02 degree
Yaw: 0.03 degree


30x UAV Camera Data
f=4.5-135mm, Aperture size 16.0
30x optical zoom, 5000000 full HD lens
1/3 inch image sensor OV Sensor with 4000000 Pixel
Video Resolution: 1920*1080P@60FPS, Video Format MJPG
Support 64G SD Card video & photo storage
Micro HDMI output 1080P@60FPS
Wide Dynamic range up to 105dB
Super Lolux: Color 0.05lux@F1.6, in low light enviroment can capture clear image features and videos.
Automatic white balance, Automatic Gain, Automatic color correction.
Support PWM and serial port command control.
