FMS part 4258 KV550 Brushless Motor
Made By: FMS MODEL
Item No.: FMS4258-KV550
MPN: 4258-KV550
Brushless Motor(outer-rotor)
Dimension: Ф44*89.6mm
Net Weight: 265g
Q'TY: 1P
More Parameter:
Battery Cells Suggestion: 6S/22.2V
Idle Current: 2.8A
Front Shaft Length: 36.3mm
Suggest ESC: 80A (not included)
Lamination Thickness: 26mm
Magnet Type: N45SH
KV (Rpm/V): 550
Max Current: 70A
Resistance: 0.022Ω
Max Work Voltage: 26V
Power: 1400W

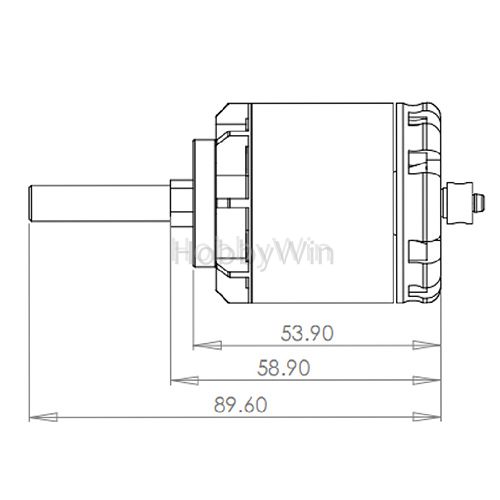

Shaft A: M6
Length B: 58.9mm
Diameter C: 44mm
Can Length D: 53.9mm
Total Length E: 89.6mm
Applicable Aircraft
For FMS 1400mm F3A
Important Note:
We offer spare parts as per manufacturer's part number.
Before purchase please double check to avoid mistake.
