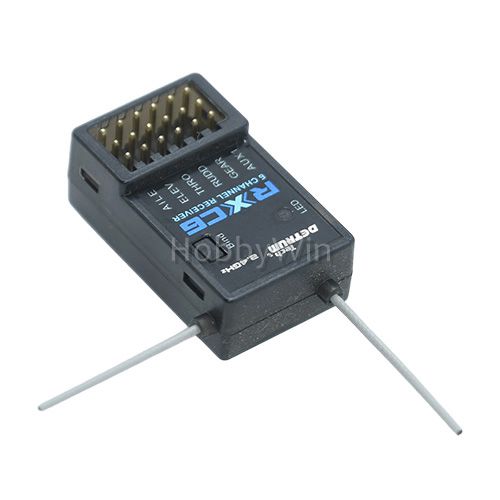

Dynam Detrum RXC6 6CH 2.4G Receiver

Dynam Detrum RXC6 6CH 2.4G Receiver
Made By: Dynam
Item No.: DTM-R004

FEATURES
Main Control IC
Using ARM M3 processor, provides strong resolution capability.
Mini Size
The size of RXC6 is super small (33*20mm), it is more suitable for small-scale aircraft which can fly in the park.
High Sensitivity
Adopting 2.4GHz direct sequence spread spectrum (DSSS) and multiple frequency-hopping spread spectrum (FHSS) technology, the receiver has high sensitivity and strong anti-interference capability, can receive signal stably for more than 1,000 meters in the air.
Diversity Antenna
By using diversity antenna, can automatically switch the signals to ensure the stability of the received signal.
Unique ID Code
Each transmitter has an individually assigned, unique ID code. Once the binding is made, the ID code is stored in the receiver and no further binding is necessary after restarting the receiver.
Fail Safe
When the aircraft flies out of range, the receiver cannot receive a valid RF signal from the transmitter, and will move the servos to predefined position.

Specification
Mini RXC6 6CH Mini Receiver
Dimension: 20*33*12.5mm
Weight: 6.9g
Frequency: 2.4GHz
Communication Distance: ＞1.1km
Power Supply: 3.6-16V
Output Signal: PWM
Q'TY: 1P
