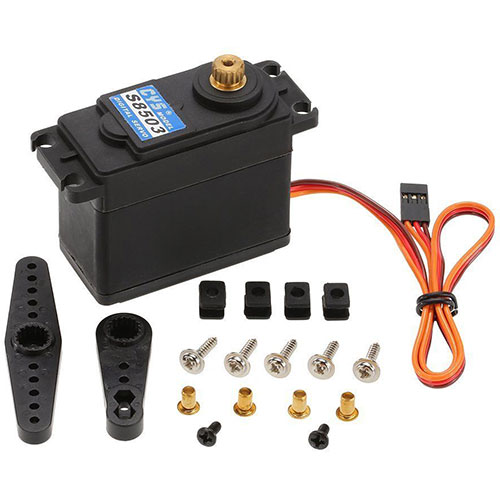

CYS S8503 30Kg Metal Gear Digital Servo

CYS S8503 30Kg Metal Gear Digital Servo
Made By: CYS MODEL
Item No.: CYS-S8503

30Kg High-torque Metal Gear Digital Servo
Size: 59.5*29*51.3mm /2.34*1.14*2.02in
Weight: 154g ±1g (5.43 oz)
Control System: (+)Pulse Width Control 1500usec Neutra
JR plug wire: 30cm
Operating Voltage: 6.0-7.4V
Operating Temperature Range: (-)10 to +50 Celcius degree
Operating Speed (at no-load):
0.22sec/60 degree -(6.0V)
0.20sec/60 degree -(7.4V)
Stall Torque:
26kg.cm -(6.0V)
30kg.cm -(7.4V)
Operating Angle: 45deg.one side pulse traveling 500 usec
Direction: Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V): 20mA/idle and 300mA no load operating
Current Drain (7.4V):    20mA/idle and 400mA no load operating
Stall Current: 3.5A/3.9A
Dead Band Width: 4usec
Motor Type: 3 Pole Ferrite Drive
Bearing Type: Dual Ball Bearing
Horn gear spline: 17T
Gear Type: Metal
Connector Wire Length: 300mm±5mm
Wire info:
Brown/Black = Negative
Red = Positive
Orange/White = Signal
Q'TY: 1P
Fit for 1/5 RC Truck

Important Notes:
01. Refer to the figure when installing the servo accessories.
02. For engine powered airplanes and boats, rubber must be used to reduce vibration.
03. Please choose correct model for your application.
04. Torque over-loaded will damage the servo's mechanism.
05. Keep the servo clean and away from dust, corrosive gas and humid air.
