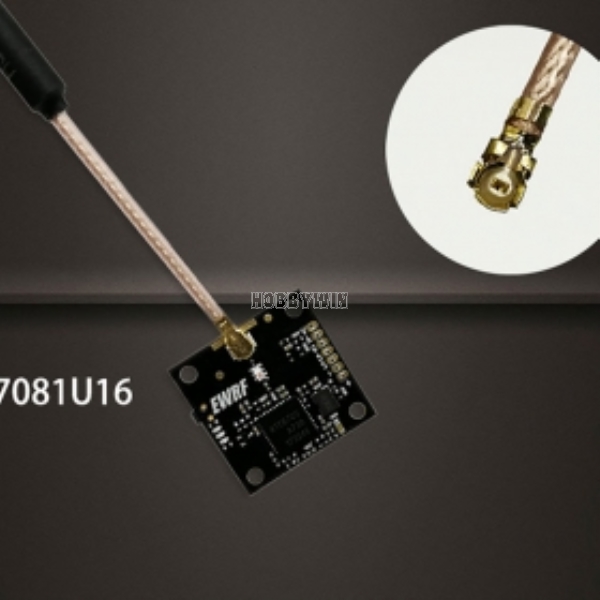

5.8G All-In-One 25mW 7CH Video Transmitter

5.8G All-In-One 25mW Audio /Video Transmitter 7CH
Item No.: EW7081U16

FEATURES:
01. 5.8G /7-Channels
02. DC7-24V/DC5V
03. Transmission Power: 25mW
04. Weight: 1.5g /2.2g with antenna
05. Support racing channel
06. Channel changes through S.BUS
07. High-quality components, professional circuit design
08. Standard size 20x20mm
09. Mounting hole distance 16x16mm
10. 75mA work current under 12V voltage
11. Exclusive dipole whip antenna

How-To-Use
1. Step 1:
Press the button (1-2s) to enter the setting mode, the module enters the channel number (1-8) setting.
Short press the button to adjust "1-8" (LED2 flashes once, LED0 flashes the number represents the current set channel number.);
2. Step 2:
Press and hold the key (1-2s) to enter the channel group (A-F) setting,
short press the button to adjust "A-F" (LED2 flashes twice, LED0 flashes the current setting Channel group)
3. Step 3:
long press the button (1-2s) to exit the setting mode, LED0 and LED2 remain lit.
4.To observe the current channel settings, just re-power to view.

Corresponding Reference Item:
LED2: represents the channel type (channel number or channel group).
Flashes once, representing the LED0 is the channel number (1-8), blinking twice on behalf of LED0 shows the channel group (A-F).
LED0: LED0 flashes the number represents the channel number (1-8), or channel group (A-F).
LED3: S.BUS signal ON LED3 will be lit.
